| Name: | 1060 Aluminum foil for Lithium ion battery |
|---|---|
| Alloy: | 1235、1060、1070 |
| Thickness: | 0.016-0.2mm |
| Width: | 100-1600mm |
| State of material: | H18 |
| Application: | Lithium ion battery |
| MOQ: | 3tons |

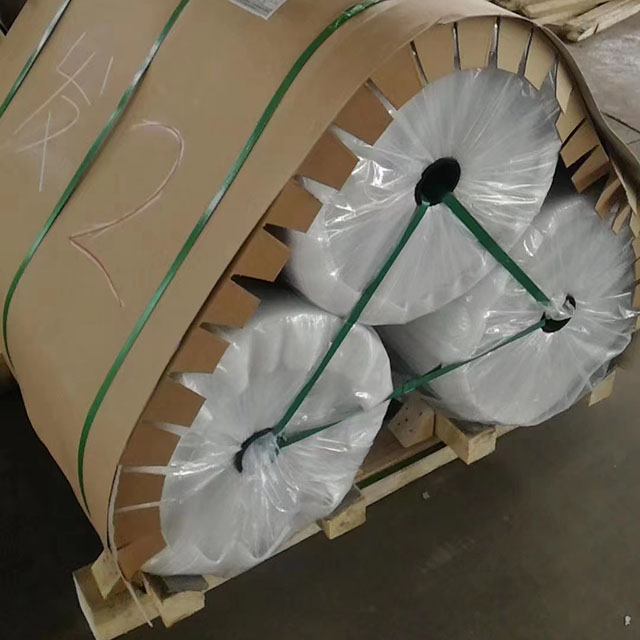

| Packaging: | Wooden box or wooden bracket. |
| Supply Capacity: | 5-5000tons |
| Service: | Original factory warranty, global export |
| Lead time: | 7-45 days delivery |
| Length: | customer requirements |
| Inquiry |
Product Description
Specifications
Typical alloy | 1235、1060、1070 |
Material status | H18 |
Thickness（mm） | 0.016-0.2 |
Width（mm） | 100-1600 |
Length（mm） | According to customer requirements |
Application | Lithium ion battery |
Product Advantages
The main composition materials of lithium ion battery include electrolyte, isolation materials, positive and negative electrode materials, etc. The positive electrode includes a current collector composed of aluminum foil, lithium cobalate or lithium ferrous phosphate. At present, ordinary battery foil products generally require strength ≥ 180Mpa, and are pure aluminum alloy. That is to say, battery foil is a product with extremely strict requirements for aluminum foil substrate. Battery foil requires the thinnest thickness, highest strength, highest surface dyne value, minimum thickness difference, optimal shape, and cleanest surface.
Yanke Aluminum's 1235 aluminum foil, 1060 aluminum foil, etc. are widely used on aluminum foil for lithium ion batteries. The products have uniform and clean surface color, flat plate shape, and no visible oil stain; Strength>180Mpa, elongation>1.5%, wetting>32 dyne, which can effectively improve the adhesion between the active substance and the collecting fluid and reduce the manufacturing cost.
